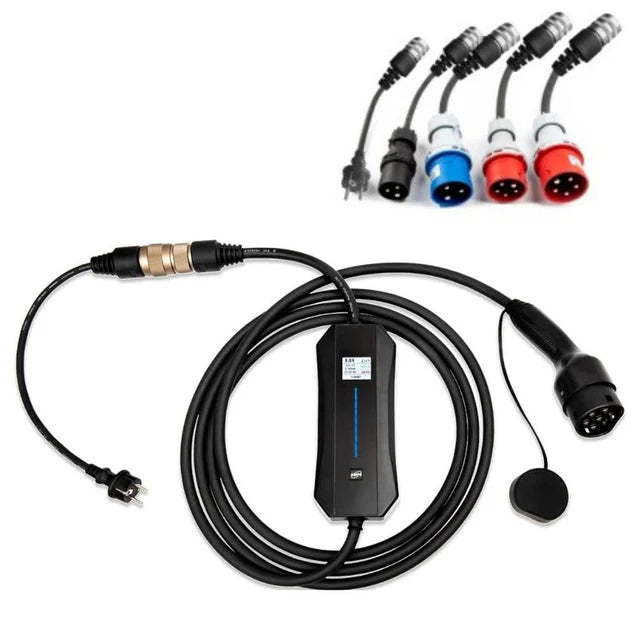

Teison 22 kW Portable Charging Station – Mobile and efficient solution for charging electric vehicles
Teison 22 kW is a highly efficient portable charging station that offers fast and safe charging of your electric vehicle anywhere, anytime. Compatible with a wide range of electric vehicles, it is the ideal solution for home use, travel and business needs.
Main Features
Power and Compatibility
- Maximum power: Up to 22 kW (three-phase), 11 kW (16 A), 3.7 kW (single-phase from Schuko socket).
- Connector: Type 2 female, IEC62196-2 standard, compatible with most electric vehicles.
- Adjustable current: From 6A to 32A, allowing adaptation to different electrical networks and requirements.
Flexibility and Convenience
- Adapters: Included adapters for connecting to Schuko socket, CEE5-16 and CEE5-32, providing charging from different types of sockets.
- Portability: Compact size and light weight (about 3 kg), making it easy to transport and use in different locations.
- Plug & Play: Easy to use without the need for complicated installation or settings.
Intelligent Functions
-
LCD Display: Color screen providing information about:
- The current charging status.
- Voltage, charging current and energy consumed.
- Charging time and operating temperature.
- Charging programming: Possibility of delayed start up to 8 hours, which allows charging during lower tariff periods.
- Safety: Built-in protection against overvoltage, overload, short circuit, overheating and current leakage (Class A, AC<30mA).
Advantages
- Universal compatibility: Suitable for all electric vehicles charging in Mode-2 (AC charging).
- Maximum flexibility: Ability to charge from different outlets and adjust the charging current as needed.
- Intelligent control: Monitor and manage the charging process via the convenient LCD display.
- High safety: IP65 dust and water protection, IK08 mechanical shock resistance, ensuring reliable operation in various conditions.
- Energy efficiency: Optimize costs by using night rates and energy-saving modes.
Technical Specifications
- Operating voltage: 230 V AC (single-phase) / 400 V AC (three-phase).
- Maximum current per phase: Adjustable from 16 A to 32 A.
- Cable length: 5 meters.
- Case material: Durable plastic (PC+GF10%).
- Temperature range: -30°C to +50°C.
- Protection level: IP65.
- Certificates: CE, TUV, compliance with standards IEC/EN 61000-6-1, IEC 62752, etc.
The set includes:
- Teison 22 kW portable charging station.
-
Interchangeable adapters for different types of sockets:
- Schuko contact.
- CEE5-16.
- CEE5-32.
- User manual.
Ideal for:
- Home use: Convenient and fast charging at home with maximum power.
- On the go: Charge your electric vehicle anywhere with access to electrical power.
- Business and office applications: Flexible solution for charging company vehicles or customers.
Why choose Teison 22 kW?
Teison 22 kW combines mobility, power and smart features to provide the optimal solution for charging electric vehicles. With its high-quality components and built-in protections, it guarantees safety and reliability with every charge.
Charge efficiently and conveniently with Teison 22 kW – the ideal solution for every electric car owner!
