DC Fast Charging Station ELNEXUS Pulse 40 kW CC2 1 electric vehicle

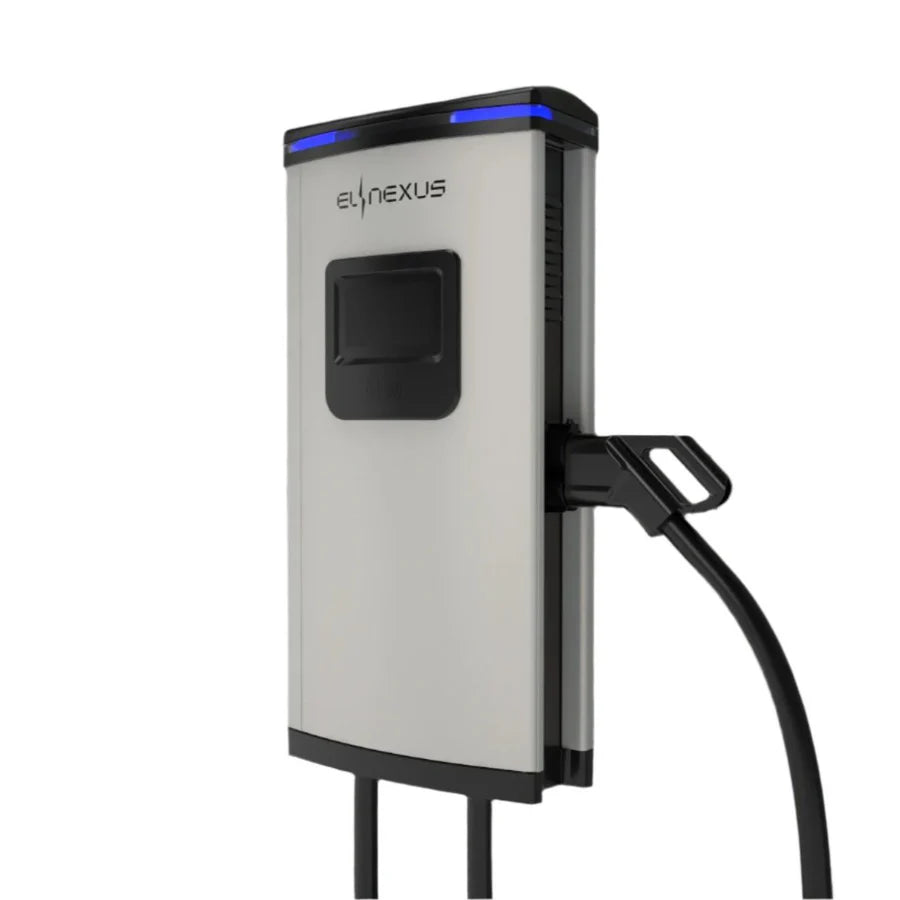

ELNEXUS Pulse DC 40 – An innovative solution for fast and efficient charging of electric vehicles

ELNEXUS Pulse DC 40 is a modern and highly efficient three-phase DC fast charging station, designed and manufactured in Bulgaria by Elnexus – a company with proven experience in the development of charging infrastructure. With a production base and service center located in the country, we guarantee reliability, quality and fast service.

With a power output of 40 kW , the ELNEXUS Pulse DC 40 significantly reduces charging times, offering a safe, efficient and convenient solution for a variety of applications – from public parking lots to corporate fleets and retail locations.

Main features

• Power and compatibility
  The charging station has a power of 40 kW , compatibility with CCS2 output connector and an output voltage range of 150 Vdc to 1000 Vdc . The maximum current reaches 133A , which ensures high efficiency.
• Intuitive design and convenience
  The station is equipped with a 7-inch color LCD screen for easy control and monitoring. With an IP55 protection level , it is suitable for both indoor and outdoor installation. The operating temperature range from -25°C to +60°C makes it ideal for all weather conditions.
• Energy efficiency and safety
  With an efficiency of over 95% at full load, the ELNEXUS Pulse DC 40 includes a number of protections against overvoltage , overload , current leakage , overheating and ground faults .

Advantages of ELNEXUS Pulse DC 40

• Fast charging, optimized to save time, providing greater rotation of charging points.
• High reliability and safety thanks to double protection for the user and the vehicle.
• The ELNEXUS intelligent platform enables full real-time reporting, paid charging with flexible payment methods (including RFID and mobile apps), as well as remote management for diagnostics and monitoring.

The flexibility in the application makes it an ideal choice for malls, car dealerships, public parking lots, and corporate fleets.

Installation and maintenance

• Installation:
  The station is suitable for wall mounting or rack mounting . The power supply requires AC380V±15% , 3P+N+PE , 50/60 Hz .
• Support:
  The design allows easy access to all components for quick and convenient maintenance. Low standby power consumption contributes to reducing operating costs.

Applications of ELNEXUS Pulse DC 40

• Improve the customer experience in retail locations such as malls, supermarkets, showrooms, hotels, office buildings.
• Ensure reliable charging in high-traffic public parking lots.
• The charging station is an excellent solution for companies that want to offer convenience to their employees through rapid charging of corporate fleets.

Why choose ELNEXUS Pulse DC 40?

• Created by a Bulgarian company that offers not only a first-class product, but also professional assembly and installation.
• The station can be connected to the ELNEXUS electric vehicle charging network for paid charging, including comprehensive maintenance and service.

Contact us today and take a step forward towards a sustainable and modern charging infrastructure!
