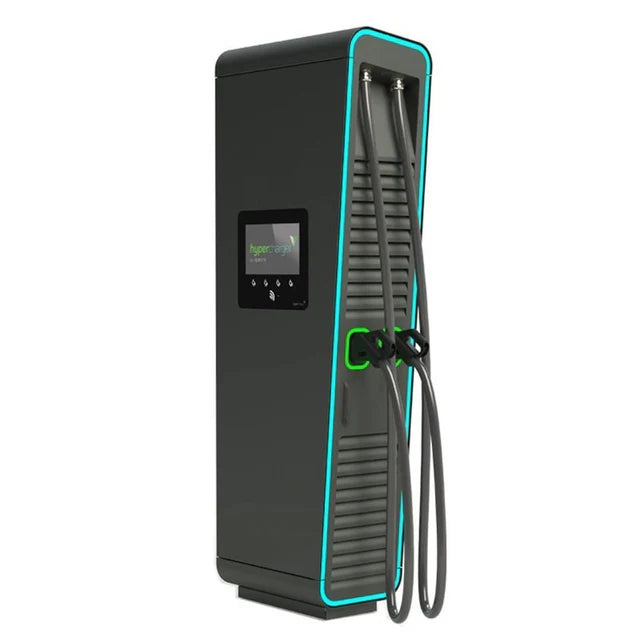

Alpitronic HYC 200 kW DC CCS2 fast charging station with cable

HYC 200 kW Alpitronic – DC fast charging station for up to two electric vehicles

The HYC 200 from Alpitronic is a modern fast charging station designed to meet the needs of electric vehicles and heavy goods transport. With a maximum power of 200 kW and intelligent power management, it offers the possibility of charging up to three vehicles simultaneously, making it ideal for public charging stations, fleets and commercial premises.

Main features and charging speed

1. Supported power and charging capabilities:

1. • Maximum power: Up to 200 kW when using two Power-Stacks.
   • Output voltage: Range from 150 Vdc to 1000 Vdc.
   • Current: Up to 600 A (boost), providing fast charging, including for large batteries.
   • Dynamic Power Distribution: Charges up to three electric vehicles simultaneously with intelligent power management, according to their needs.
   • Average charging time: Depending on the electric vehicle technology.

     2. System specifications:

     • Efficiency: Up to 97.5%, resulting in reduced energy costs.
     • Interfaces: Supports CCS2 up to 600 A, CHAdeMO up to 200 A, with the option of CCS1 and GB/T upon special request.
     • Operating temperature range: From -30°C to +55°C, making it suitable for all climatic conditions.
     • Noise emissions: Below 52 dBA, making it suitable for use in sensitive areas.

       3. Management and connectivity:

       • User interface: 15.6-inch color display with intuitive navigation.
       • Connectivity: LTE/4G modem, LAN connection and OCPP 1.6 J support (2.0 J ready).
       • Remote Management: Diagnostics, software updates and real-time monitoring.

         4. Safety and security:

         • Integrated protections: Type 1+2+3 lightning protection, emergency stop, tilt sensor and door protection.
         • Degree of protection: IP54 and IK10 – waterproof and shockproof construction.

           5. Installation and configuration:

           • Compact design: Dimensions: 2185 x 420 x 663 mm, weight from 325 to 462 kg depending on configuration.
           • Installation: Floor mounting on a base suitable for indoor and outdoor conditions.
           • Cables: Length up to 5 m with optional Cable Management System (CMS).

Ingenious Matrix technology

The station uses the innovative Ingenious Matrix technology, which allows:

• Charging optimization: Dynamic power distribution between all connected vehicles.
• Maximum efficiency: Automatically directs the required power to each vehicle.

Flexibility and customization

• Payment options: QR code, RFID cards, credit cards.
• Configuration: Possibility of custom colors, stickers and branding.
• Multilingual support: Interface in 27 languages.

Why choose Alpitronic HYC 200?

• Maximum power and efficiency: 200 kW for fast and reliable charging.
• Flexibility and modularity: Easy customization according to the needs of your location.
• Security: Integrated safety protections.
• Easy installation and maintenance: Compact design and user-friendly interface.
• Innovative technology: Ingenious Matrix for optimal power distribution.
