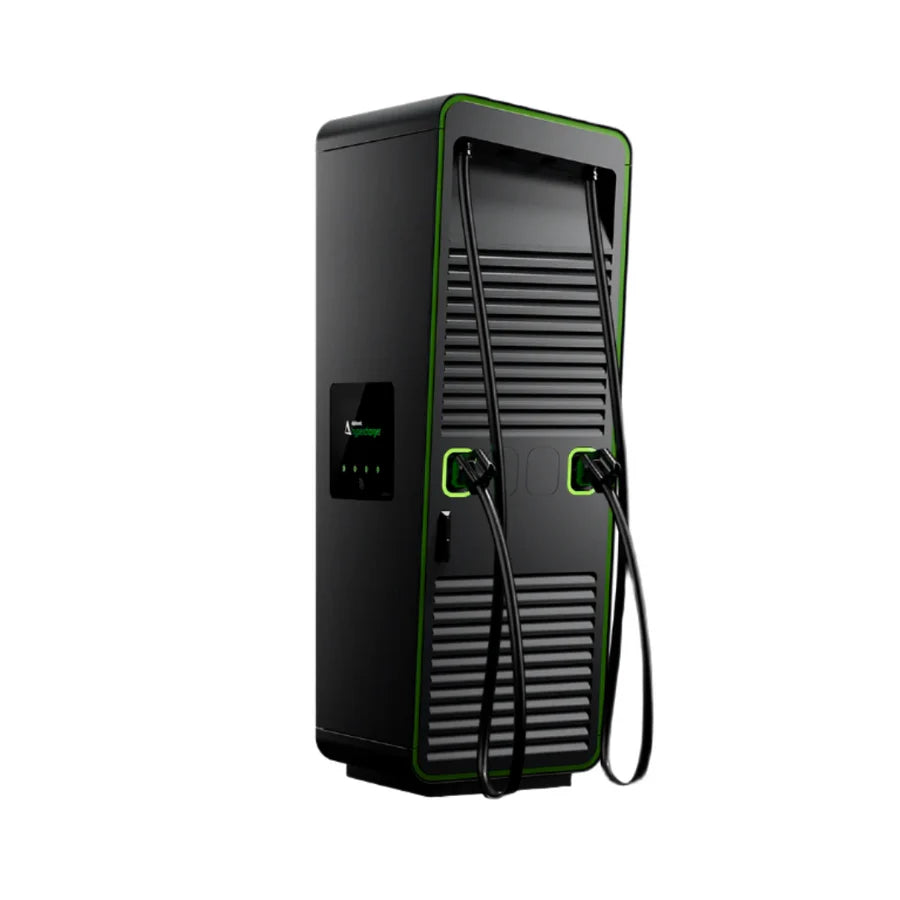

Fast charging station HYC 400 kW Alpitronic DC 2x CCS2 OCPP 1.6J 4G

Alpitronic HYC 400 – Highly efficient and flexible charging station for electric vehicles

1. System specifications

• DC interfaces: Supports CCS2 (up to 600 A), CHAdeMO (up to 200 A), as well as CCS1, GB/T and NACS (on request).
• Efficiency: Up to 97.5%, minimizes energy loss.
• Noise emissions: Below 52 dBA, making it suitable for noise-sensitive areas.
• Operating temperature range: From -30°C to +55°C, ensuring reliable operation in extreme conditions.
• Dimensions and weight: Compact design (2185 x 732 x 663 mm), weighing from 560 kg to 890 kg, depending on configuration.

2. Supported power and charging capabilities

• Power: From 100 to 400 kW, with the possibility of dynamic distribution between connected vehicles.
• Maximum current: 600 A, ideal for fast charging of large batteries.
• Voltage range: From 150 Vdc to 1000 Vdc, making it compatible with almost all electric vehicles on the market.
• Charging interfaces: Supports up to three charging points simultaneously with dynamic power management.

3. Management and connectivity

• User interface: Large 15.6” color display with easy navigation and multilingual menu.
• Remote Control: Supports LTE, 4G and LAN connectivity for remote management, diagnostics and software updates.
• Protocols: OCPP 1.6 J compatible and OCPP 2.0 J ready, providing flexibility and easy integration with different charging networks.

4. Safety and security

• Integrated protections:

  • Lightning protection type 1+2+3.
  • Emergency stop and tilt sensor that prevents accidents in unexpected events.
  • IP54 protection rating, providing water and dust resistance, and IK10 for impact protection.
• Temperature Management: A temperature monitoring and control system that prevents overheating.

5. Installation methods and configurations

• Installation: Floor or on a concrete base, which facilitates installation in different locations.
• Compactness: All components are integrated into one body, eliminating the need for additional equipment.
• Cables: Lengths from 3.5 m to 5 m, with optional cable management system (CMS).

6. Flexible configuration

• Personalization: Possibility of customized colors, patches and stickers according to customer requirements.
• Payment options: Supports RFID, QR code, and POS terminals for credit and debit cards.
• Power modules: Granular steps of 50 kW, allowing flexible tuning according to user needs.

7. Innovative Ingenious Matrix technology
The station uses the innovative Ingenious Matrix technology, which optimizes charging through dynamic power distribution. This technology allows for automatic energy targeting to a single vehicle or evenly distributing it across multiple vehicles.

Why choose Alpitronic HYC 400 ?

• Power and efficiency: 400 kW power for minimal charging time.
• Flexibility: Suitable for a variety of applications – from public stations to corporate fleets.
• Reliability: High-quality components and advanced technologies ensure a long device life.
• Easy installation and maintenance: Compact design and remote control options.
• Security: Integrated protections ensuring safety for users and devices.

The Alpitronic HYC 400 is an advanced fast charging solution that combines efficiency, reliability and innovation, providing the ideal charging for all modern electric vehicles.
