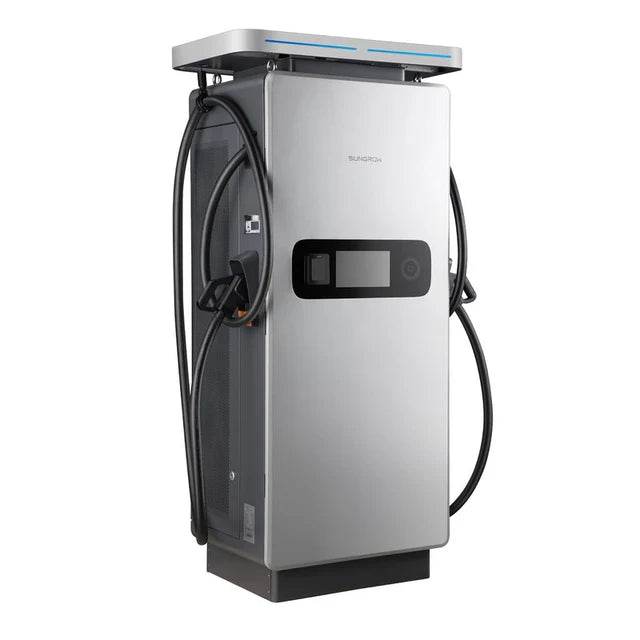

Sungrow 120kW DC fast charging station with cable

SUNGROW DC 120 kW – Highly efficient and reliable solution for fast charging of electric vehicles

SUNGROW DC 120 kW is an advanced charging station designed for fast and efficient charging of electric vehicles. With its power output of up to 120 kW, it is an ideal solution for public charging in parking lots and retail locations, as well as for corporate fleets. With the ability to charge two vehicles simultaneously thanks to the two CCS2 connectors, SUNGROW 120 kW ensures optimal power distribution for maximum efficiency.

Main features:

• Power: Up to 120 kW DC, ideal for modern EV batteries.
• Connectors: Two CCS2 connectors with current up to 250 A.
• Output voltage: Adaptive in the range of 200 Vdc to 920 Vdc.
• Screen: 10-inch color touch display for easy and intuitive control.
• Communication: OCPP 1.6J with OCPP 2.0.1 ready, Ethernet, WLAN and 4G connectivity.
• Protection: Built-in protections for overload, short circuit, temperature control and overvoltage.

Smart features:

• Dynamic power management: The charging station automatically distributes power between two vehicles, ensuring optimal charging efficiency.
• Management and Connectivity: Remote management capability via mobile app and OTA (Over-the-Air) updates for support and optimization.
• Payment and Authentication: Supports RFID cards, Plug & Play and optional payment with debit/credit cards or QR code.

Strength and durability:

• With protection level: IP65, resistant to dust, water and external influences.
• Cooling: Intelligent air system to maintain constant performance.
• Housing: C5 anti-corrosion protection, making it suitable for outdoor conditions.

Environmental sustainability:

SUNGROW 120 kW is compatible with photovoltaic systems (PV-ESS), making it part of the sustainable future of electric charging.

Technical data:

• Dimensions: 930 x 1930 x 615 mm.
• Weight: Up to 500 kg (depending on configuration).
• Temperature range: Operates in conditions from -35°C to +55°C.
• Noise level: ≤ 65 dB at 1 m distance at full power.

Applications:

• Public parking lots and commercial locations: Ideal for high-traffic areas and the need for fast charging.
• Corporate fleets: Perfect solution for charging electric vehicles in corporate fleets.
• Gas stations and highways: Application for intermediate refueling during long trips.

Features and benefits:

Installation flexibility:

• Installation options: Suitable for wall or floor mounting, with the option of integration on a concrete base for better stability.
• Easy installation and maintenance: All key components are easily accessible for servicing, minimizing maintenance time.

Integration with various systems:

• Future-proof technology: Provides the ability to expand power and configuration depending on future needs.
• OCPP Compatibility: Works with OCPP 1.6J and is OCPP 2.0.1 ready, allowing easy integration with the most modern charging infrastructure management software solutions.

Durability and durability:

• Long service life: Over 10 years, thanks to high-quality materials and intelligent design.
• Operation in extreme conditions: Temperature range from -35°C to +55°C, suitable for all climate conditions.

Optional extras:

• 22 kW AC additional charging: Allows charging of electric vehicles with AC current in parallel with DC charging.
• Custom branding: Ability to add colors, logos, and stickers according to customer requirements.

Potential additional questions:

• How does SUNGROW optimize energy efficiency?
  Thanks to intelligent energy management, the station reduces losses and provides efficiency over 97%.
• What are the connection options?
  Ethernet, WLAN and 4G mobile connection for remote control and monitoring.
• Is the station suitable for mixed fleets?
  Yes, SUNGROW is compatible with various EV standards, making it ideal for fleets with a variety of electric vehicles.

Choose SUNGROW 120 kW for fast, efficient and reliable charging that meets your needs in modern charging infrastructure!
