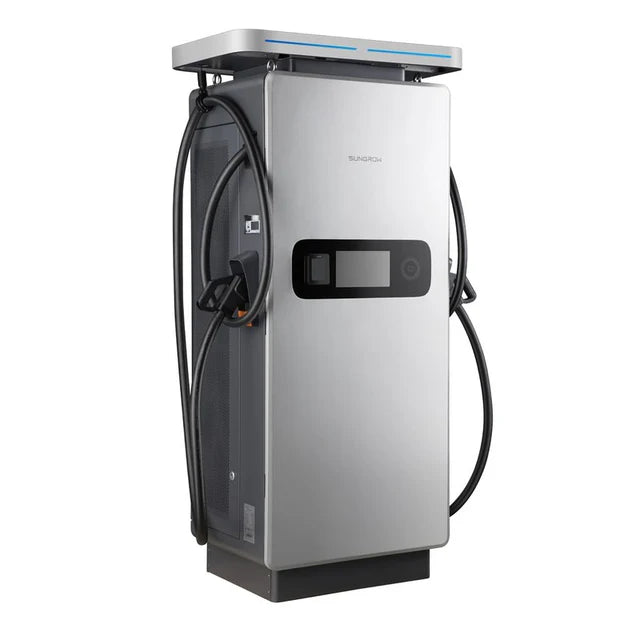

Sungrow 180kW DC fast charging station with cable

SUNGROW 180 kW – Optimal solution for fast and efficient charging of electric vehicles

SUNGROW 180 kW DC charging station is a high-performance device designed to meet the needs of public and commercial facilities. With advanced technology and optimized efficiency, it provides fast and reliable charging for various electric vehicle models, compatible with current charging infrastructure requirements.

Main features of SUNGROW 180 kW DC:

Power and efficiency:

• Power: Up to 180 kW DC, ideal for fast charging.
• Two CCS2 connectors: Allows charging of two cars simultaneously, saving time.

Communication and connectivity:

• OCPP 1.6J and OCPP 2.0.1 ready: Compatibility with the latest management platforms.
• Connectivity: Supports Ethernet, Wi-Fi, and 4G for remote control and monitoring.

Design and installation:

• Compact design: Easy to install on a floor or wall base, ideal for outdoor and indoor conditions.
• Protection: IP54 and IK10 protection rating, ensuring resistance to weather conditions and impacts.

User convenience:

• 10-inch touchscreen: Easy-to-use interface with intuitive controls.
• Multiple payment options: Supports RFID cards, mobile apps, and QR code.

Safety:

• Built-in protections: Protection against overvoltage, overload, short circuit and overheating.
• Intelligent control: Dynamic power distribution for optimal charging.

Key benefits:

• Fast charging: Charge the battery to 80% in less than 30 minutes.
• Reliability: Long life and low maintenance requirements.
• Flexibility: Supports integration with photovoltaic systems and energy storage.

Applications:

• Public parking lots: Fast charging for customers in retail outlets and business centers.
• Corporate fleets: Charging management for company vehicles.
• Highways: Ideal for intermediate charging during long journeys.

Technical specifications:

• Output voltage: 200V – 1000V DC.
• Maximum current: 500A.
• Operating temperature: From -30°C to +55°C.
• Dimensions (W x H x D): 854 x 2250 x 420 mm.
• Weight: 400 kg.

Payment options:

• RFID cards: Contactless payment via cards.
• Mobile applications: Specialized applications for managing and paying for charging.
• QR code: Payment by scanning a code with a mobile device.
• POS terminal (optional): Ability to pay with debit and credit cards.

Compatibility with operator platforms:

• OCPP 1.6J and OCPP 2.0.1 readiness ensure easy integration with management and reporting systems.

Management via mobile app:

• Session Tracking: Monitor charging power, time, and cost in real time.
• Charging schedules: Determine the most optimal charging times.
• Loading Reports: Generate detailed reports for each session.
• Notifications: Receive notifications about session status and possible issues.

Installation of SUNGROW 180 kW DC charging station:

Installation of the device is quick and easy, ensuring security and durability:

• Mounting options: Floor or wall mounting for flexibility.
• Installation Preparation: Requires professional installation by a qualified technician.
• Electrical installation: Connection to a three-phase network (400V), with suitable cables for power up to 180 kW.

Choose SUNGROW 180 kW to provide fast and reliable charging for your customers or company vehicles!
