EVlink Pro 11kW | 16A charging station

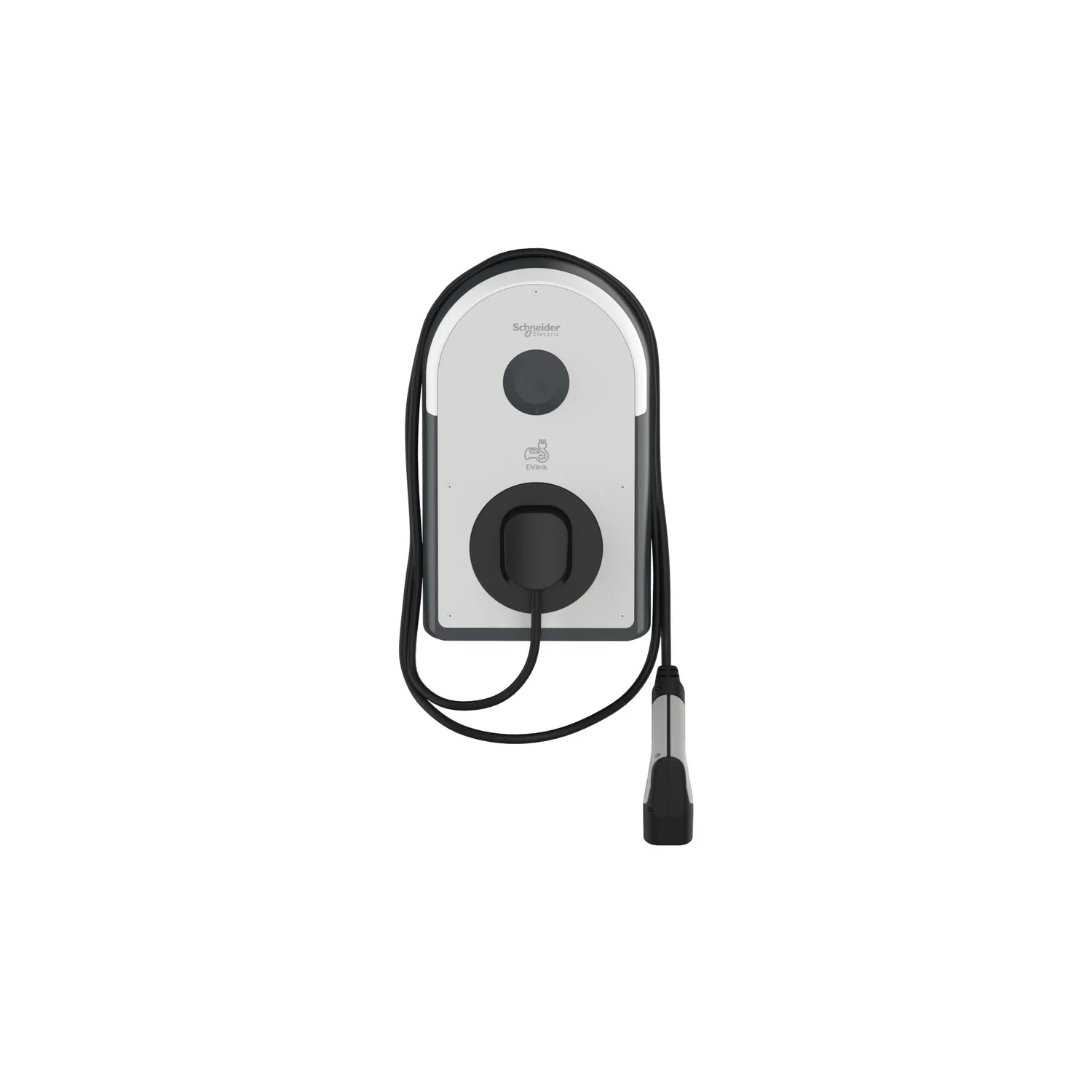

EVlink Pro AC Charging Station (model EVB3S11N4FB)

The EVlink Pro AC is a highly efficient electric vehicle charging solution designed for wall or stand mounting. It is suitable for both indoor and outdoor use, offering reliability and safety.

Main features:

• Charging power: 11 kW with three-phase power supply (3P+N), rated current 16 A, voltage 380–415 V AC at 50/60 Hz.

• Connectors:

  • Front outlet with Type 2 socket with cover (T2S) and silver-plated contacts to prevent overheating.
  • Additional front outlet with a Type TF household socket, compatible with various devices.

Protection:

• Built-in residual current device (RCD type B-EV): Provides additional safety during charging.

Energy meter:

• Integrated MID-certified energy meter with accuracy class 1 for precise measurement of energy consumption.

Connectivity:

• Ethernet LAN: Two RJ45 ports for Ethernet connection.
• Additional connectivity: Possibility of additional modules for 3G/4G and Wi-Fi connectivity.
• Communication protocol: Supports OCPP 1.6 JSON for intelligent charging management and integration with energy management systems.

Access and management:

• Control via RFID or NFC cards: Compatible with technologies such as MIFARE Classic, Ultralight and Plus.

Installation and durability:

• IP54 and IK10 protection ratings: Suitable for various environmental conditions.
• Mounting options: Suitable for wall mounting or floor stand (ordered separately).

Dimensions and weight:

• Width: 317 mm
• Height: 529 mm
• Depth: 158 mm
• Weight: 7.2 kg

Additional features:

• Load management: Possibility of power limitation and delayed start of charging via binary inputs to optimize energy consumption.
• Compatibility with different grounding systems: Supports TT, TN-S, TN-CS and IT (single-phase networks only; 400V three-phase networks are not allowed).
• Easy setup: Configuration via the eSetup app via Bluetooth or via EcoStruxure EV Charging Expert for quick commissioning.

Application:

The EVlink Pro AC charging station is ideal for home use , company fleets , public parking and workplaces , providing reliable and safe charging of electric vehicles.
