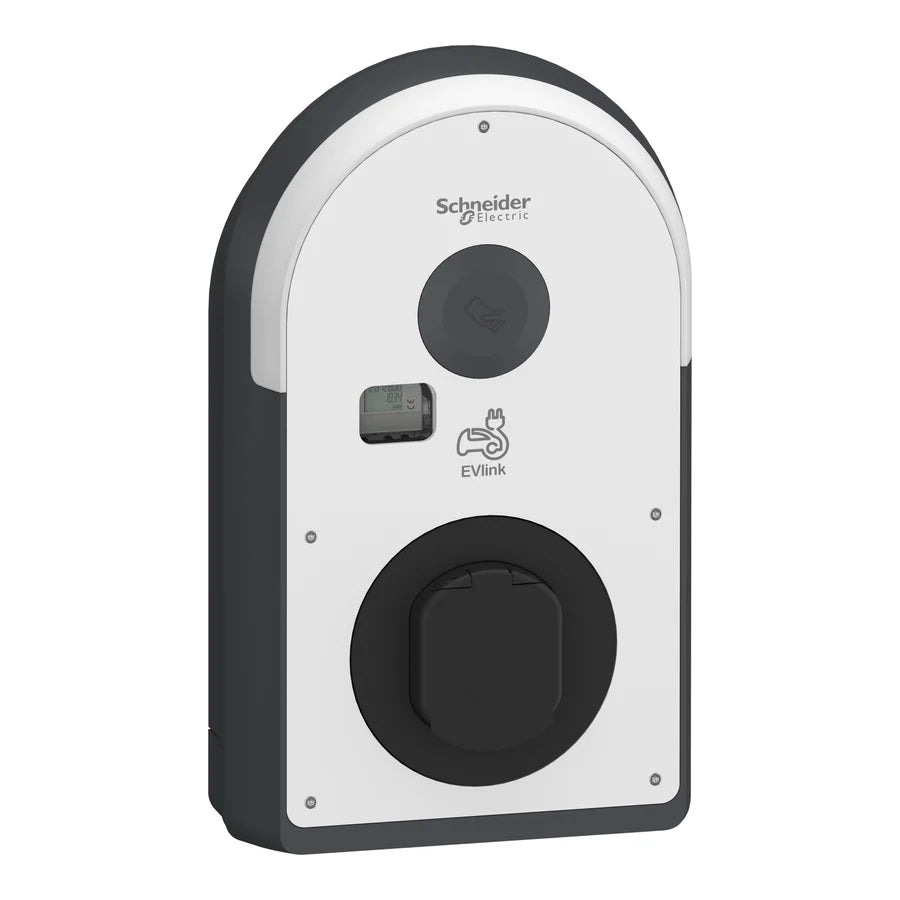

EVlink Pro AC/AC charging station, 22kW, 32A, 3P+N, T2S output socket, RDC-DD 6mA, MID meter

The EVlink Pro AC charging station (model EVB3S22N40M) is a high-efficiency electric vehicle charging solution designed for wall or stand mounting, suitable for both indoor and outdoor use.

Main features:

• Charging power: 22 kW with three-phase power supply (3P+N) with a rated current of 32 A and a voltage of 380–415 V AC at 50/60 Hz.

• Connector: Front outlet with Type 2 socket with cover (T2S) and silver-plated contacts to prevent overheating.

• Protection: Built-in residual direct current detection system (RDC-DD) with a threshold of 6 mA, providing additional safety during charging.

• Energy meter: Integrated MID-certified energy meter with accuracy class 1 for precise measurement of energy consumption.

• Connectivity: Two RJ45 ports for Ethernet LAN connection, with the option of additional modules for 3G/4G and Wi-Fi connectivity.

• Communication protocol: Supports OCPP 1.6 JSON for intelligent charging management and integration with energy management systems.

• Access and management: Possibility of control via RFID or NFC cards, compatible with technologies such as MIFARE Classic, Ultralight and Plus.

• Installation and durability: IP55 and IK10 protection ratings suitable for various environmental conditions, with wall or floor stand mounting options (ordered separately).

• Dimensions and weight: Width 317 mm, height 529 mm, depth 153 mm, with a net weight of 7.2 kg.

Additional features:

• Load management: Possibility of power limitation and delayed start of charging via binary inputs to optimize energy consumption.

• Compatibility with various grounding systems: TT, TN-S, TN-CS and IT (only for single-phase networks; 400V three-phase networks are not allowed).

• Easy setup: Configuration via the eSetup app via Bluetooth or via EcoStruxure EV Charging Expert for quick commissioning.

This charging station is ideal for home use, company fleets, public parking lots and workplaces, providing reliable and safe charging of electric vehicles.
