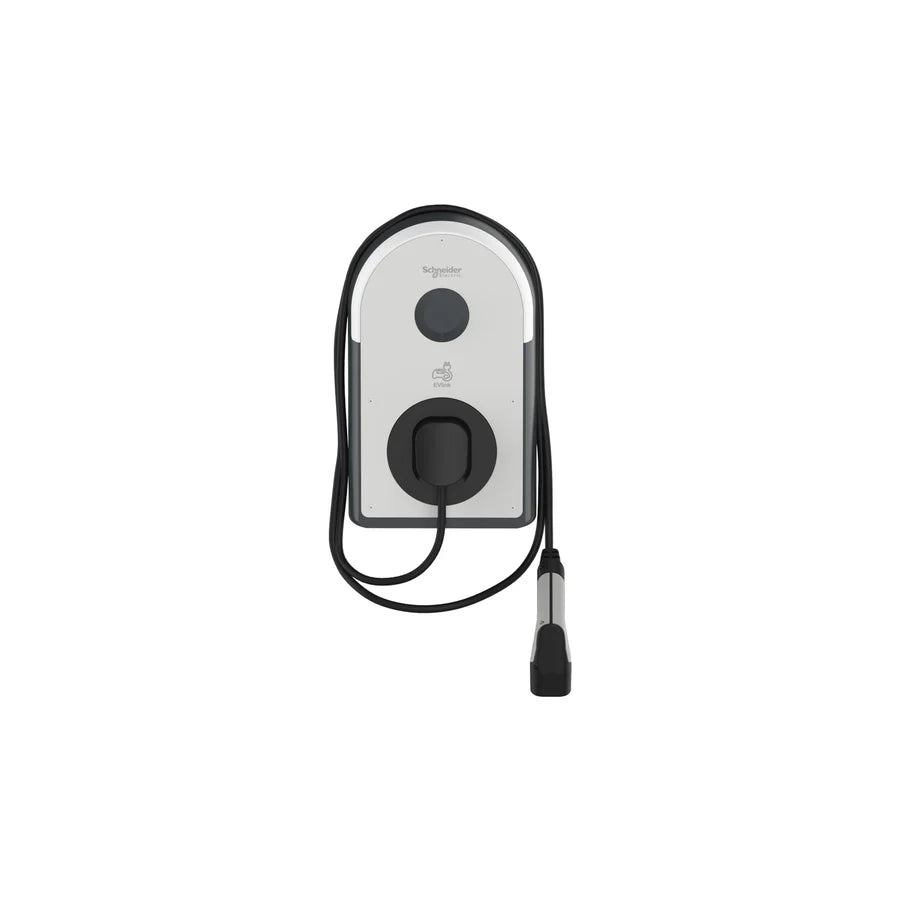

EVlink Pro SCHNEIDER charging station 11kW | 16A | with attached cable

EVlink Pro AC Charging Station (model EVB3S11NCA)

The EVlink Pro AC is a highly efficient and reliable electric vehicle charging solution that is suitable for wall or stand mounting. This station offers excellent protection, intelligent control and is suitable for both indoor and outdoor use.

Main features:

• Charging power: 11 kW with three-phase power supply (3P+N), rated current 16 A, voltage 380–415 V AC at 50/60 Hz.
• Connector: Attached cable with a length of 5 meters and a Type 2 connector with silver-plated contacts to prevent overheating.

Protection:

• Built-in residual direct current detection system (RDC-DD): Threshold 6 mA.
• Built-in residual current device (RCD) type A-SI: Threshold 30 mA.
• Integrated MNx auxiliary contact: For additional safety.

Energy meter:

• Integrated MID-certified energy meter with accuracy class 1 for precise measurement of energy consumption.

Connectivity:

• Ethernet LAN: Two RJ45 ports for Ethernet connection.
• Additional connectivity: Possibility of additional modules for 3G/4G and Wi-Fi connectivity.
• Communication Protocol: Supports OCPP 1.6 JSON for intelligent charging management and integration with energy management systems.

Access and management:

• Control via RFID or NFC cards: Compatible with technologies such as MIFARE Classic, Ultralight and Plus.
• Free access: No card required.

Installation and durability:

• IP55 and IK10 protection ratings: Suitable for various environmental conditions.
• Mounting options: Suitable for wall mounting or floor stand (ordered separately).

Dimensions and weight:

• Width: 317 mm
• Height: 529 mm
• Depth: 183 mm
• Weight: 10 kg

Additional features:

• Load management: Ability to limit power and delay the start of charging via binary inputs, which optimizes energy consumption.
• Compatibility with different grounding systems: Supports TT, TN-S, TN-CS and IT (single-phase networks only; 400V three-phase networks are not allowed).
• Easy setup: Can be configured via the eSetup app via Bluetooth or via EcoStruxure EV Charging Expert for quick commissioning.

Application:

The EVlink Pro AC charging station is ideal for home use , company fleets , public parking and workplaces . It provides reliable and safe charging of electric vehicles and offers smart charging management capabilities.
