EVlink Pro charging station - Schneider 7.4kW | 32A | with socket

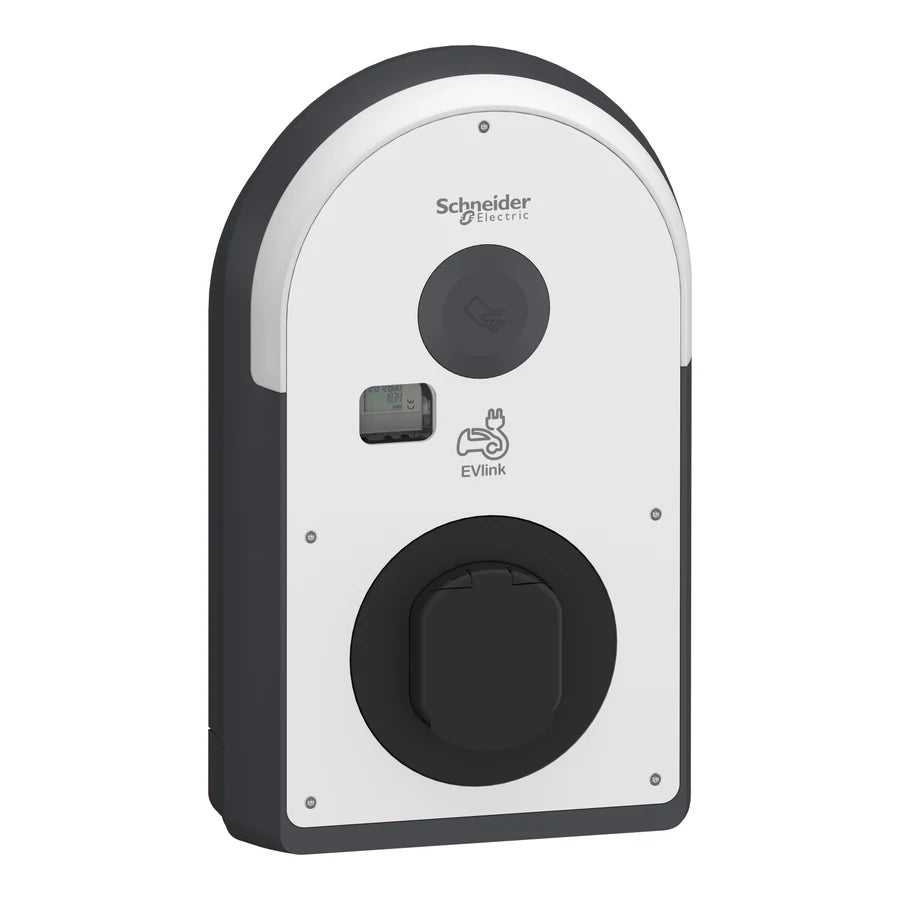

EVlink Pro AC charging station (model EVB3S07N4AM)

EVlink Pro AC is a highly efficient electric vehicle charging solution that offers safety, reliability and smart features. With its compact size and high degree of protection, it is suitable for installation in both domestic and public and corporate environments.

Main features:

• Charging power: 7.4 kW at single-phase power supply (1P+N), rated current 32 A, voltage 220–240 V AC at 50/60 Hz.
• Connector: Front output with Type 2 (T2S) socket and cover, silver-plated contacts to prevent overheating.

• Protection:

  • Built-in residual direct current detection system (RDC-DD) with a threshold of 6 mA.
  • Built-in residual current device (RCD) type A-SI with a threshold of 30 mA.
  • Integrated MNx auxiliary contact for additional safety.
• Energy meter: Integrated MID-certified energy meter with accuracy class 1, for precise measurement of energy consumption.

Connectivity:

• Ethernet LAN: Two RJ45 ports for Ethernet connection.
• Additional connectivity: Modules for 3G/4G and Wi-Fi connectivity can be added.
• Communication protocol: Supports OCPP 1.6 JSON , which allows intelligent charging management and integration with various energy management systems.

Access and management:

• Control: Possibility of control via RFID or NFC cards , compatible with MIFARE Classic, Ultralight and Plus technologies.
• Free access: No need for a card, which ensures easy access.

Installation and durability:

• Degrees of protection:

  • IP55: Dust and water splash protection, suitable for outdoor and indoor conditions.
  • IK10: High resistance to mechanical shocks.
• Installation: Can be mounted on both a wall and a floor stand (stand ordered separately).

Dimensions and weight:

• Width: 317 mm
• Height: 529 mm
• Depth: 153 mm
• Weight: 7.2 kg

Additional features:

• Load management: Possibility of power limitation and delayed start of charging via binary inputs to optimize energy consumption.
• Compatibility with different grounding systems: Supports TT , TN-S , TN-CS and IT (only for single-phase networks; 400V three-phase networks are not allowed).
• Easy setup: Can be configured via the eSetup app via Bluetooth or via EcoStruxure EV Charging Expert for quick commissioning.

Application:

The EVlink Pro AC charging station is perfect for home use , company fleets , public parking and workplaces . It provides reliable and safe charging of electric vehicles while offering intelligent energy management features.
